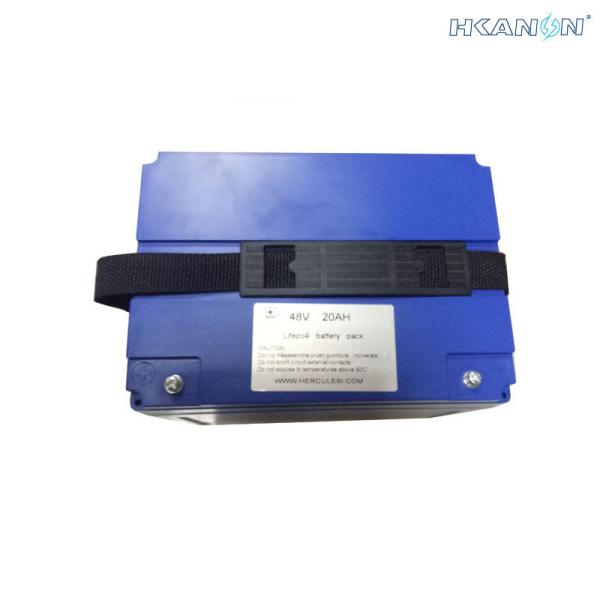

    Electric Bicycle 48v Battery Pack 300mah 26650 Cell With Abs Plastic Box

    Ask Lasest Price
    Brand Name : HKANON
    Model Number : HK-48V20Ah
    Certification : CE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000PCS/Month
    Delivery Time : 8 days
    • Product Details
    • Company Profile

    Electric Bicycle 48v Battery Pack 300mah 26650 Cell With Abs Plastic Box

    Lithium Ion 48V 20Ah LiFePO4 Electric Bicycle Battery Pack with ABS Plastic Box


    Specifications

    Battery PACK Parameters :

    Battery Material Lithium
    Nominal Voltage (V) 48V
    Nominal Capacity (Ah) 20 Ah
    Max Discharging Current 30 A ( BMS SET MAX 1000W )
    BMS Can Upgrade to 1000W or 1500W
    Maximum Charge Voltage ≤ 54.6 V
    Discharge cut-off voltage 36.4 V
    Charging Current 2 Amps
    Weight (NW) 4 Kg
    Lifecycle 1200 ~ 1800 times
    Dimension 235×160×155 mm
    BMS System Parameters :
    Overcharge protection (V) 4.2±0.025
    Overcharge Recovery (V) 4.10±0.05
    Over-discharge voltage (V) 3.5±0.05
    Over-discharge recovery Disconnect the load or charge
    Resistance (m/ohm) < 20
    Charge balanced current (mA) 60
    Charger Parameters :
    Applying Battery Type Lithium
    Input Voltage (AC/V) 110V or 220V
    Output Current (A) 2 A
    Output Voltage (DC/V) ≤ 54.6 V

    Package includes:
    1 × Lithium Battery Pack
    1 × BMS System

    1 × Charger


    LiFePO4 material is by far the safest, most long cycle life, no pollution to the environment of new energy materials !


    A New hope,Change in the future !
    As more and more pollution,Warming seriously,Earth Close to Unfit for human Living.
    Now, we must begin to use high-tech The energy to change the day of the disaster.
    LiFePO4 Battery Is a new energy,It will not cause pollution,It does not produce an explosion,Long life,Structural stability,Cheaper!

    LiFePO4 will become the preferred battery technology for traction purposes and other situations in which high discharge characteristics and cycle life are important. (LiFePO4) batteries are based on the original lithium-ion chemistry, but LiFePO4 is used as the cathode material instead of lithium cobalt dioxide (LiCoO2). The latter is found in the most commonly used batteries in laptops, cell phones, MP3 players, etc.
    LiFePO4 is an intrinsically safer cathode material than LiCoO2 since exothermic reactions cannot occur in batteries based on this material: LiFePO4 cells do not incinerate or explode under extreme conditions. In addition, LiFePO4 cells have a higher discharge current, are not toxic and have a much higher cycle life than LiCoO2 cells.

    COMPARISON DATA AMONG VARIOUS LITHIUM BASE BATTERIES

    CellsSafetyCycle lifePower weight densityLong term costTemperature range
    LiFePO4The world's most secure battery, no explosion, no pollution, long lifeExcellent Cycle life can be as long as over 2000 cycle, best among all the listed groups.AcceptableExcellent Most economicExcellent (can be discharged at -45~ 70 Centigrade)
    LiCoO2
    LiCoO2 is expensive, the actual capacity than its theoretical capacity of only (274mAh g-1) about 50%, lower utilization of cobalt; LiCoO2 cycle life has reached 500
    Acceptable Cycle life only up to 300~500 cycle. Not good for high C-rate discharge.GoodHighDecayed beyond 55 ~ -20 Centigrade
    LiMn2O4Have to handle with care, or it might explode or catch fire under collision or over-charged.Unacceptable Cycle life only up to1 500~800 cycle, depending on the discharge C-rate.AcceptableAcceptableHigh
    Li(NiCo)O2Very unstable, must handle with extremely care, it might explode or catch fire under collision, over-charged, short circuit or when heat build-upAcceptable Cycle life can be 300~500 cycle. Not good for high C-rate discharge.GoodHighDecayed extremely fast over 55~ -20 Centigrade
